Manufacturing Process
This product is manufactured using Clad & Weld process with metallurgical bonding. It is NOT electroplated.
Metallurgical bonding creates a permanent metallurgical connection, ensuring stable reliability compared to electroplating. This enables excellent weldability, designed to resist peeling during bending, and stable performance under thermal cycling conditions.
What is Copper Clad Aluminum Flat Wire?
Copper Clad Aluminum Flat Wire is a Copper Clad Aluminum (Cu/Al) material with 65% IACS conductivity, , widely used in Industrial Motors, Photovoltaic Solar, Automotive/EV, and other applications. It combines the excellent properties of multiple metals, making it an ideal alternative to traditional single-metal materials.
Click to zoom
copper-clad-aluminum

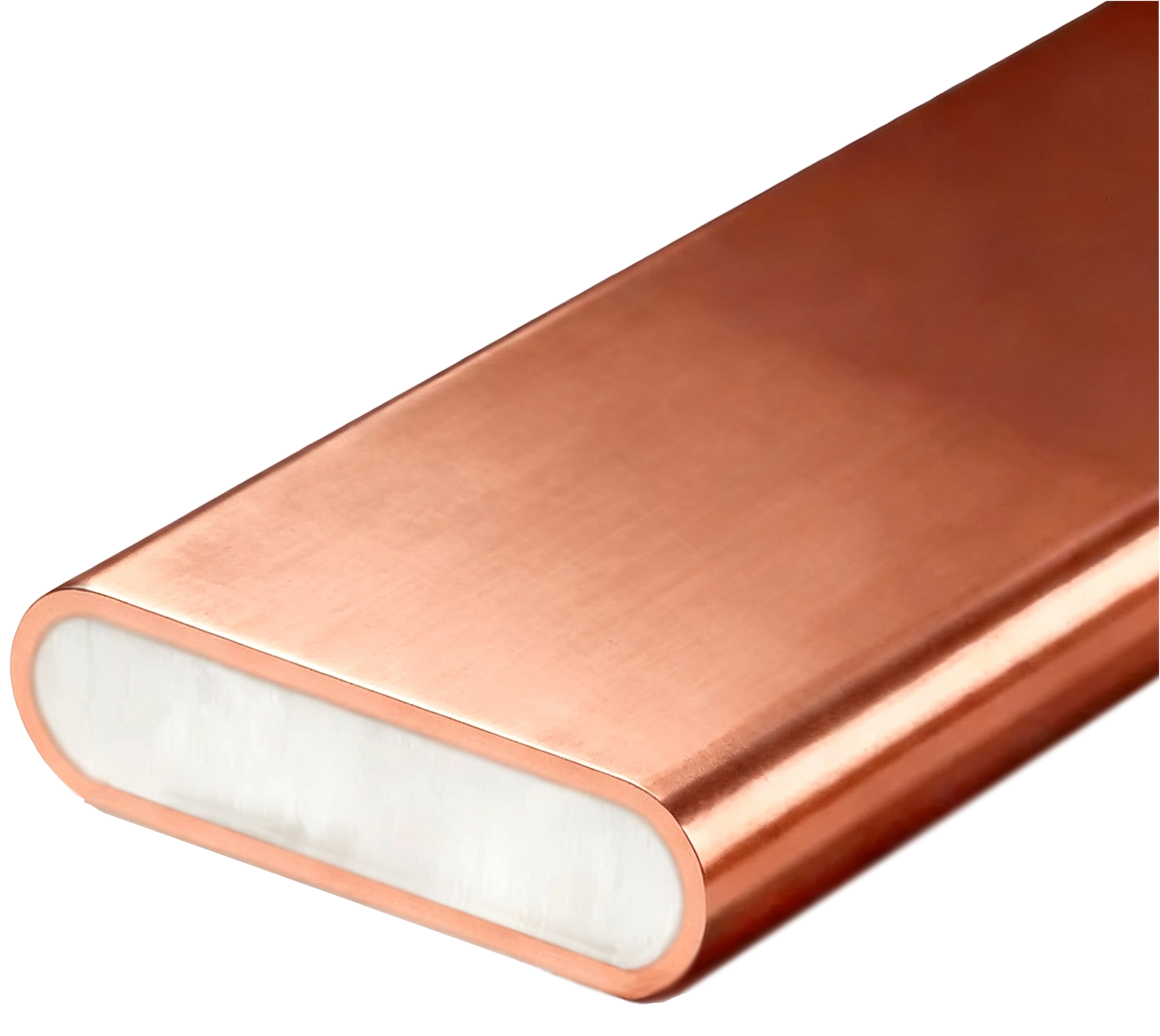

Copper Clad Aluminum Flat Wire
RAYTRON Copper Clad Aluminum Flat Wire is manufactured using advanced Clad & Weld process with metallurgical bonding between copper layer and aluminum core, bond strength ≥60MPa. Uniform copper layer thickness (15-20%), conductivity 62-65% IACS, density 3.26-3.63 g/cm³, 60% lighter than pure copper. Suitable for motor windings, transformers, and inductors requiring efficient heat dissipation and lightweight design. Compliant with ASTM B566.
Material
Copper Clad Aluminum (Cu/Al)
Conductivity
65% IACS
Tensile Strength
170 MPa
Dimensions
Applications
Industrial Motors Photovoltaic Solar Automotive/EV Aerospace & Defense
Detailed Specifications
Specs PDF
Unit System:
| Specification | Value |
|---|---|
| Size Range | Width: 0.5–10 mm, Thickness: 0.1–3.0 mm |
| Copper Layer Ratio | 15% (62% IACS), 20% (65% IACS) |
| Density | 3.26 g/cm³ |
| Bond Strength | 60 MPa |
| Standards | ASTM B566, GB/T 23309 |
| Temper | Soft (O), Hard (H) |
| R-angle Precision | ±0.01mm |
| Post-Processing | Bare, Tin-plated, Silver-plated, Enamel |
Standards & Compliance
Applicable Standards
ASTM B566 GB/T 23309 IEC 60811 BS EN 13602
Certifications
✓ ISO 9001 🌿 RoHS 🛡️ REACH
Typical Markets
🇺🇸 United States
🇪🇺 European Union
🇨🇳 China
🇯🇵 Japan
🇰🇷 South Korea
Regional Compliance Note
We can provide product certification documents that meet local regulatory requirements based on your target market.
