Inspection and Lot Documentation
Agree the inspection items before ordering: dimensions, electrical properties, surface condition and the layer or bond checks required for your product. The purchase specification should also identify the sampling plan, acceptance limits and documents needed with the shipment.
On this page
Incoming, process and release checks
Scroll horizontally to read all columns. Keep the conditions and units with each value.

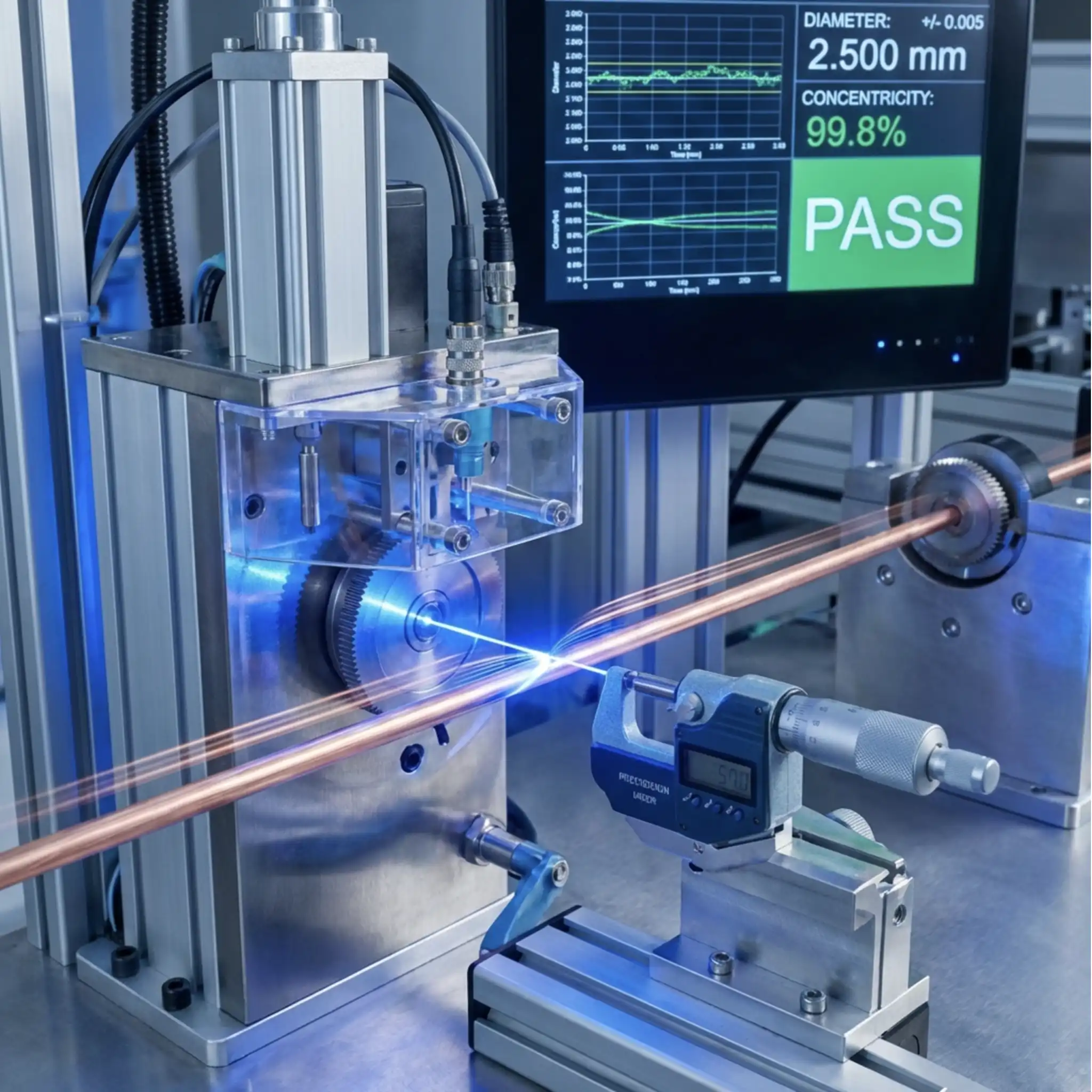

| Stage | Check objects | Record to define |
|---|---|---|
| Incoming material | Grade, composition, supplier lot and starting dimensions | Incoming inspection and material identity |
| Manufacturing | Section dimensions, surface and process/layer requirements | Process inspection linked to the product lot |
| Final release | Agreed dimensions, resistance, mechanical and bond checks | Final inspection and shipment documents |
Specify the report
State the product and drawing revision, measured characteristic, unit, test temperature or method, sampling plan and acceptance limit. For resistance, distinguish material resistivity from the finished conductor resistance and state the reference length and temperature.
Lot documentation
Request the certificate, inspection report or lot record needed for the order. A certificate of analysis or conformity should have its agreed scope; listing a test does not mean every coil receives that test. Organization certificates and finished-product approvals are separate. View Certificates · Specify Your Inspection Requirements
Engineering schematic
Inspection and qualification workflow
This diagram shows the review steps. It is not a production record. Agree the test methods, sampling and acceptance criteria for your product and project.
- Step 1
Incoming control
Material identity, dimensions and lot traceability
- Step 2
Process control
Dimensional, surface and electrical trends
- Step 3
Final release
Agreed inspection, packaging and lot records
